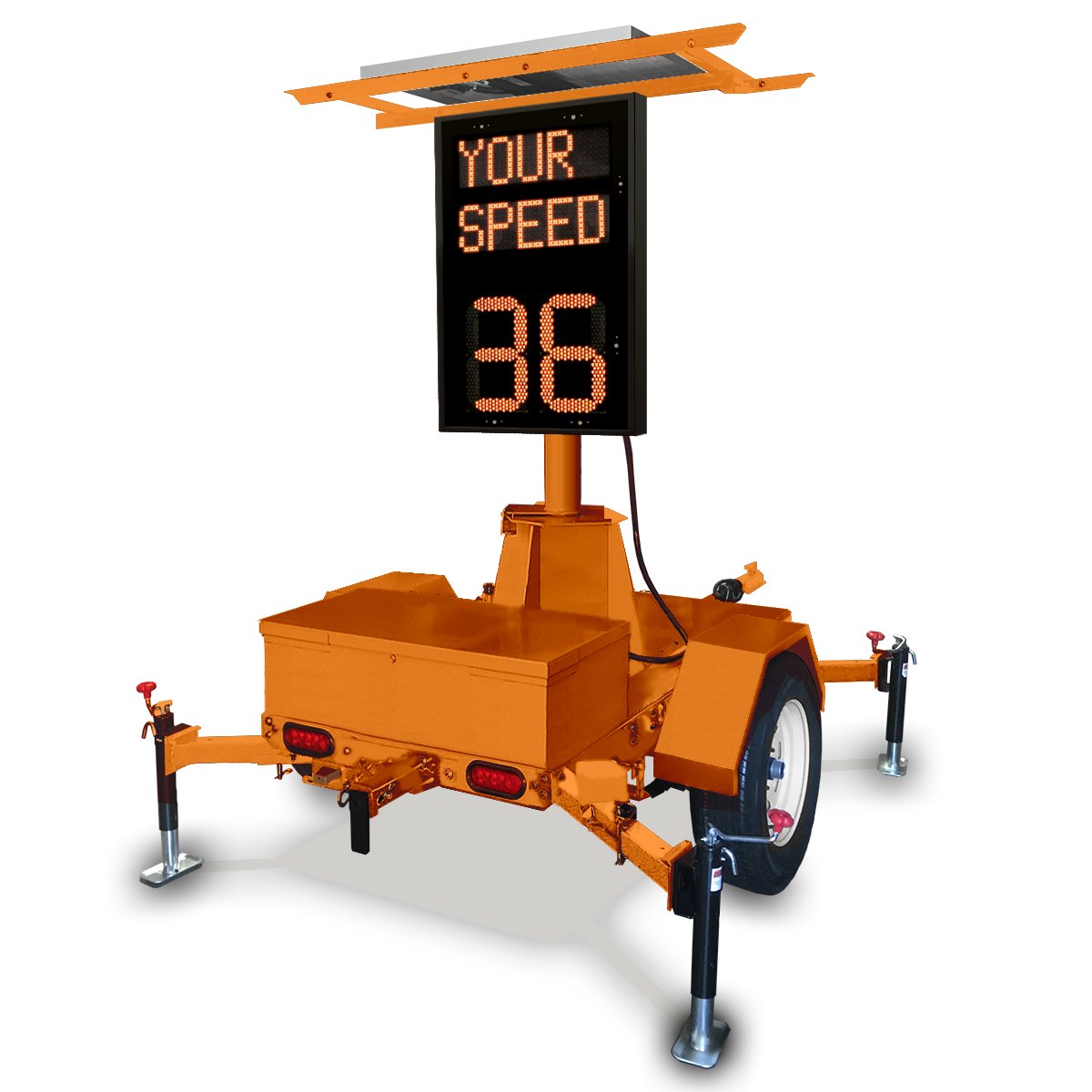

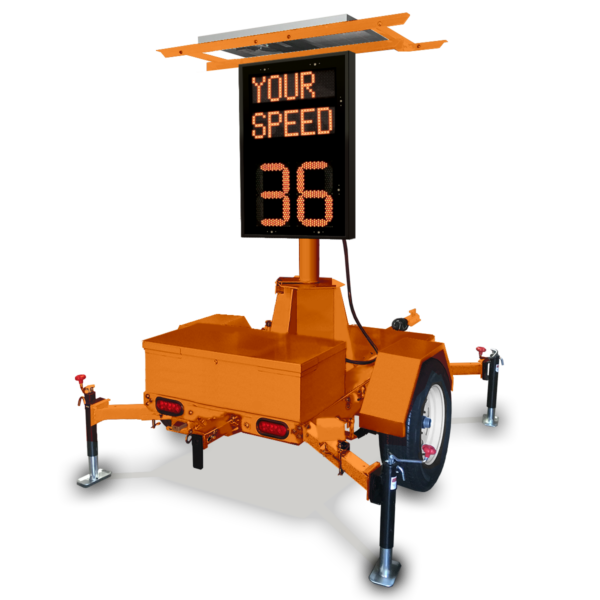

VCalm®TM

Fortel Traffic’s VCalm®TM is a powerful traffic calming message board with the added versatility of a trailer that provides a simple way for a single operator to relocate the sign.

VCalm®TM is a summation of the most important features and technology that meet the evolving needs of the traffic and construction safety industry.

  • Formed 11-gauge Cold-Rolled Steel Welded Frame
  • Sign Rotates on Center Post for Easy Transport and Storage
  • High-Capacity Electric Lift with Integrated Motor
  • Formed External Parts for Easy Replacement
  • Four Extendable Legs with Swing-Down Adjustable Leveling Jacks

Model

Trailer Color

Tires

Battery Type

Modem

Wireless Data Service

Additional Options

(More Info)
(More Info)
(More Info)
(More Info)

Strobe Color

Warranty

Description

Fortel Traffic’s VCalm®TM is a powerful traffic calming message board with the added versatility of a trailer that provides a simple way for a single operator to relocate the sign.

VCalm®TM is a summation of the most important features and technology that meet the evolving needs of the traffic and construction safety industry.

Brightest Display

VCalm® utilizes high-volume, high-intensity, tightly-clustered LEDs to maintain the highest visibility possible.

Lowest Power Consumption

VCalm® uses proprietary PWMS™ LED technology that consumes 50% less power than common LED technology. Our programming delivers exceptional autonomy for solar/battery installations in a much smaller package size.

Strongest Construction

VCalm® maintains superior construction and durability with high quality components and no moving parts.

Unrivaled Versatility

Custom Messaging based on unique road conditions, activities, or events

Multiple independently-scheduled vehicle speed thresholds can trigger any variation of messages and/or auxiliary devices: strobes, flashers, sirens, beacons, wireless alerts, etc.

Instant Critical Messaging allows you to quickly display a high priority message from a remote location (requires IP modem).

Simplest Programming

SD Card provides practically limitless data storage space (40 years of data per gigabyte) and makes programming and data retrieval simple and affordable. (SDHC compatible)

Modems, coupled with our automated online software, provide remote access to sign programming so changes can be made instantly.

VSpeed™Online is the ultimate management software that gives the ability to program signs, simulate functionality, analyze data, and deploy configuration changes through remote access or SD cards.

Easy and Accurate Reporting

Traffic Data Acquisition System (TDAS) collects the fastest and slowest speed for each vehicle. The software uses this data to calculate the percentage of slowing vehicles and prove the device’s effectiveness.

Accurate raw data collected by VCalm® can be used to construct limitless report formats and parameters for thorough data analysis.

Made In USA

Specifications

Raised Dimensions*: 60″(W) x 120″(H) x 84″(D)

Lowered Dimensions*: 60″(W) x 96″(H) x 84″(D)

Frame Construction: 2.5″ Steel Square Tube

Wheels (x4): 16″ Five-Stud Rim (White)

Jack Stands (x4): 2000lb 12″ Retractable

Jack Stand Legs (x4): 20″ Diagonally Extending Adjustable Outriggers for Maximum Stability

Hitch Receivers (Front and Back): 2″ with Removable Tongue

Hitch Type: 2″ Class II Ball Coupler

Taillights: 6-Way Standard Male Plug

Power: 12V DC

Base Weight*: 1000lb

*Size and Weight May Vary Depending on Features

Electric Lift:

  • Uniform Speed (Raise and Lower)
  • 30″ of Travel
  • Bottom of Sign Can Be Raised To 7 Feet
  • Maintenance-Free; No Hydraulic Pumps or Fluid Required
