SafeXing™

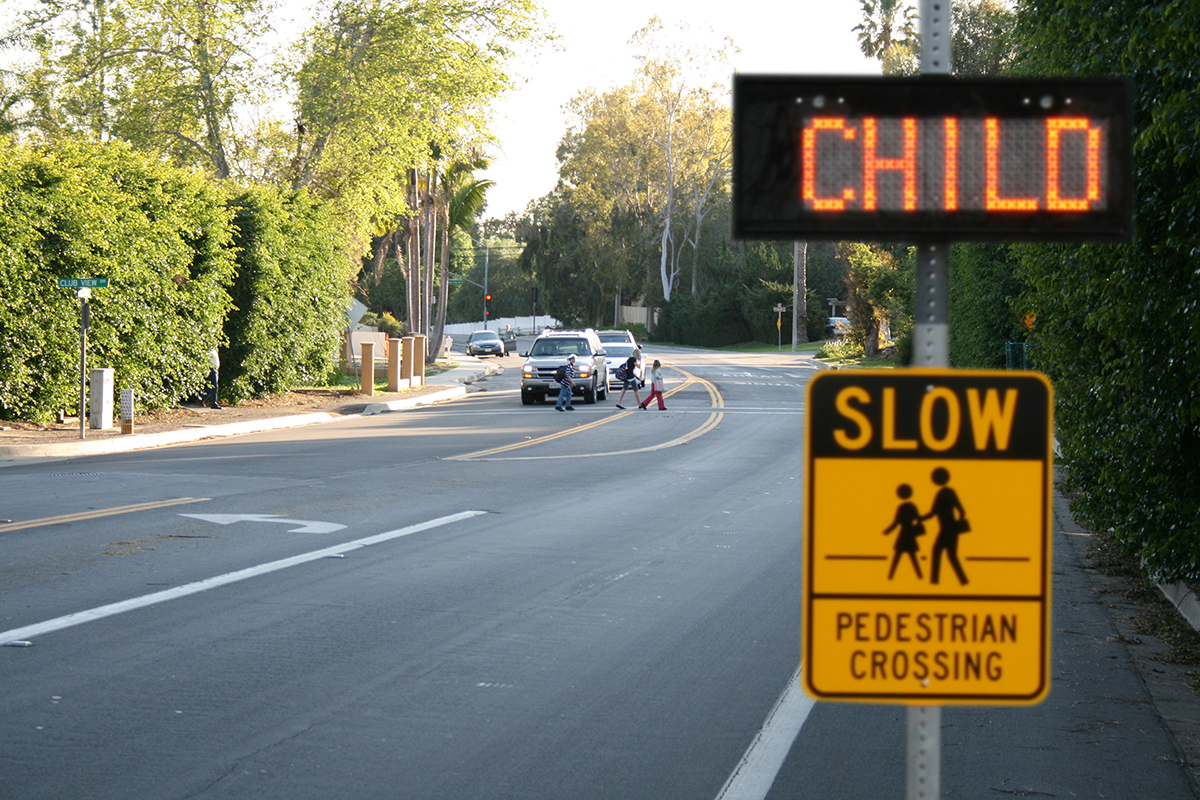

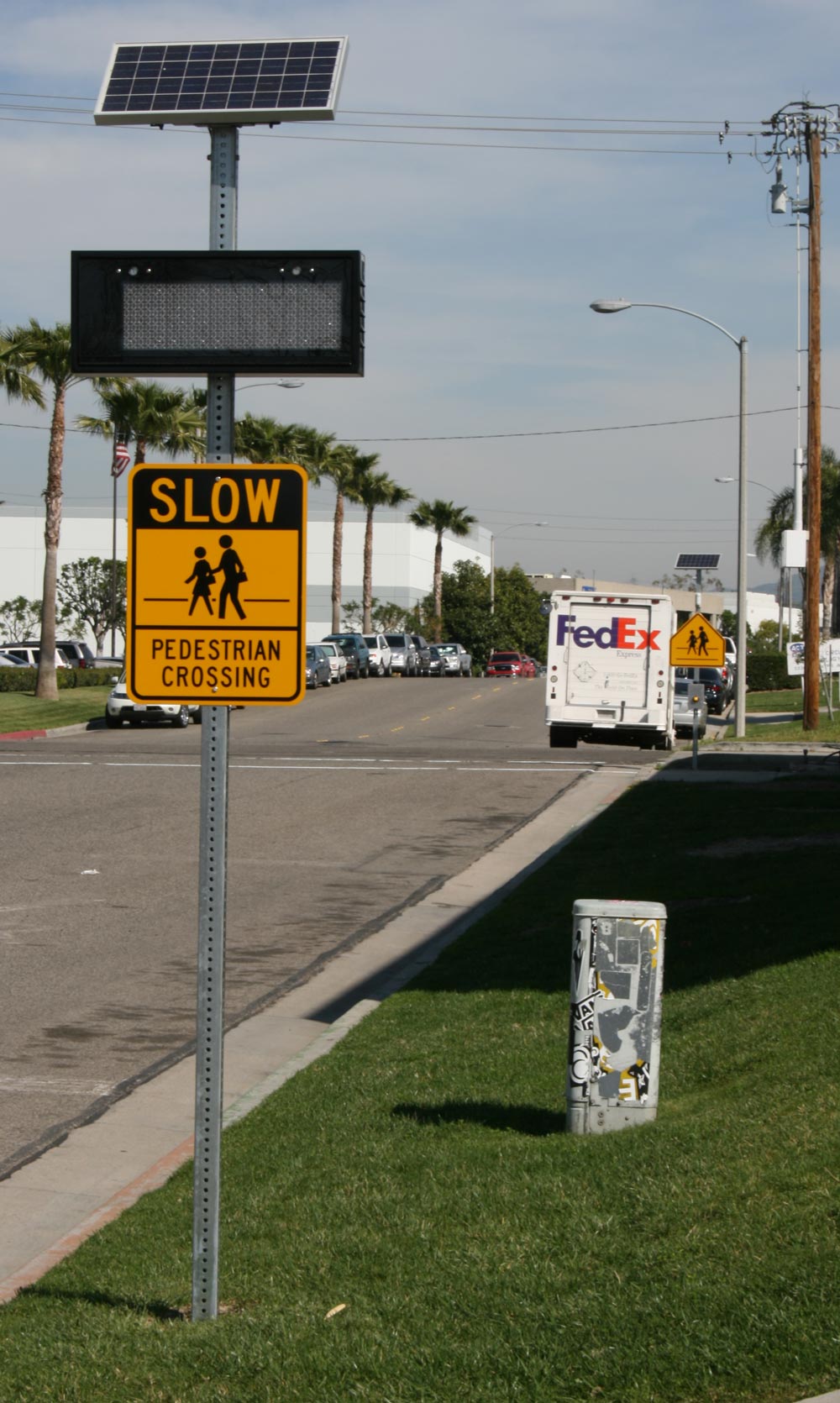

Fortel Traffic’s self-contained solar-powered SafeXing™ Advanced Warning Crosswalk System provides more advanced warning to drivers when there are pedestrians in an upcoming crosswalk. The LED sign may be placed up to 800 feet away from a crosswalk, making it the ideal choice for pedestrian crossings around corners, over hills, or any other possible application. The sign also doubles as a traffic calming sign with an optional radar.

  • Heavy-Duty 11-Gauge (0.090″) Continuous Formed Aluminum Enclosure
  • 3/8″ Polycarbonate Lens
  • High-Intensity Amber LEDs

Description

Fortel Traffic’s self-contained solar-powered SafeXing™ Advanced Warning Crosswalk System provides more advanced warning to drivers when there are pedestrians in an upcoming crosswalk. The LED sign may be placed up to 800 feet away from a crosswalk, making it the ideal choice for pedestrian crossings around corners, over hills, or any other possible application. The sign also doubles as a traffic calming sign with an optional radar.

Brightest Display

VCalm® utilizes high-volume high-intensity tightly clustered LEDs to maintain the highest visibility possible. This proven method of authoritative message presentation demands driver’s attention, making it the most effective traffic calming sign on the market.

Sign Triggering / Actuation

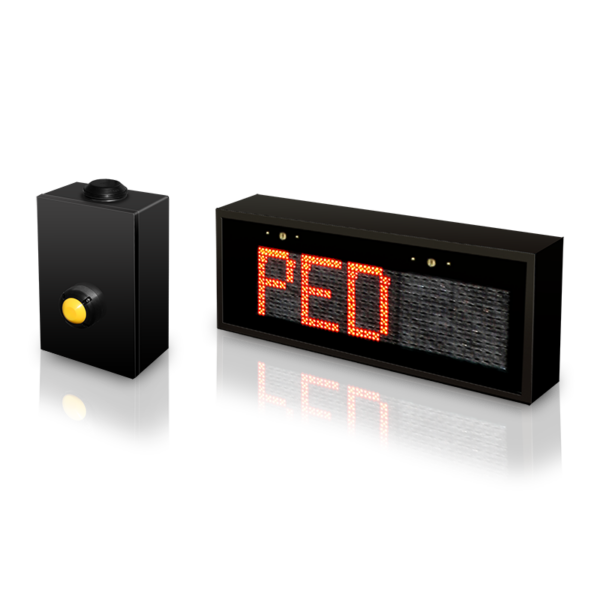

When PED push button is actuated, display alerts drivers of pedestrians in crosswalk.

Internal Radar detects vehicle speeds causing drivers to slow down when exceeding the speed limit.

Lowest Power Consumption

VCalm® uses proprietary PWMS™ LED technology that consumes 50% less power than common LED devices. This provides exceptional autonomy for solar/battery installations.

Strongest Construction

VCalm® maintains superior construction and durability with high quality components and no moving parts. The design meets the NEMA-3R specifications, and many of the VCalm® signs have withstood severe conditions, including hurricanes, fires, and extreme temperatures. VCalm® has consistently proven to be the longest lasting speed sign in the industry.

Simplest Programming

SD Card provides practically limitless data storage space (40 years of data per gigabyte) and makes programming and data retrieval simple and affordable. (SDHC compatible)

Modems, coupled with our automated online software, provide remote access to sign programming so changes can be made instantly.

VSpeed™Online is the ultimate management software that gives the ability to program signs, simulate functionality, analyze data, and deploy configuration changes through remote access or SD cards.

Easy and Accurate Reporting

With an optional radar, Traffic Data Acquisition System (TDAS) collects the fastest and slowest speed for each vehicle. The software uses this data to calculate the percentage of slowing vehicles and prove the device’s effectiveness.

Accurate raw data collected by VCalm® can be used to construct limitless report formats and parameters for thorough data analysis.

Specifications

VCalm®VMS-M: Mini Variable Message Sign

Heavy-Duty 11-Gauge (0.090″) Continuous Formed Aluminum Enclosure

High-Intensity Amber LEDs

3/8″ Polycarbonate Lens

Characters: 4″(W) x 6″(H)

Sign Dimensions: 28.5″(W) x 12″(H) x 5″(D)

Weight: 39lb

Pole: 2.5″(D) x 2.5″(W) x 12′(H) (3′ Underground)

Pedestrian Push Button

Radar (Optional):

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy
